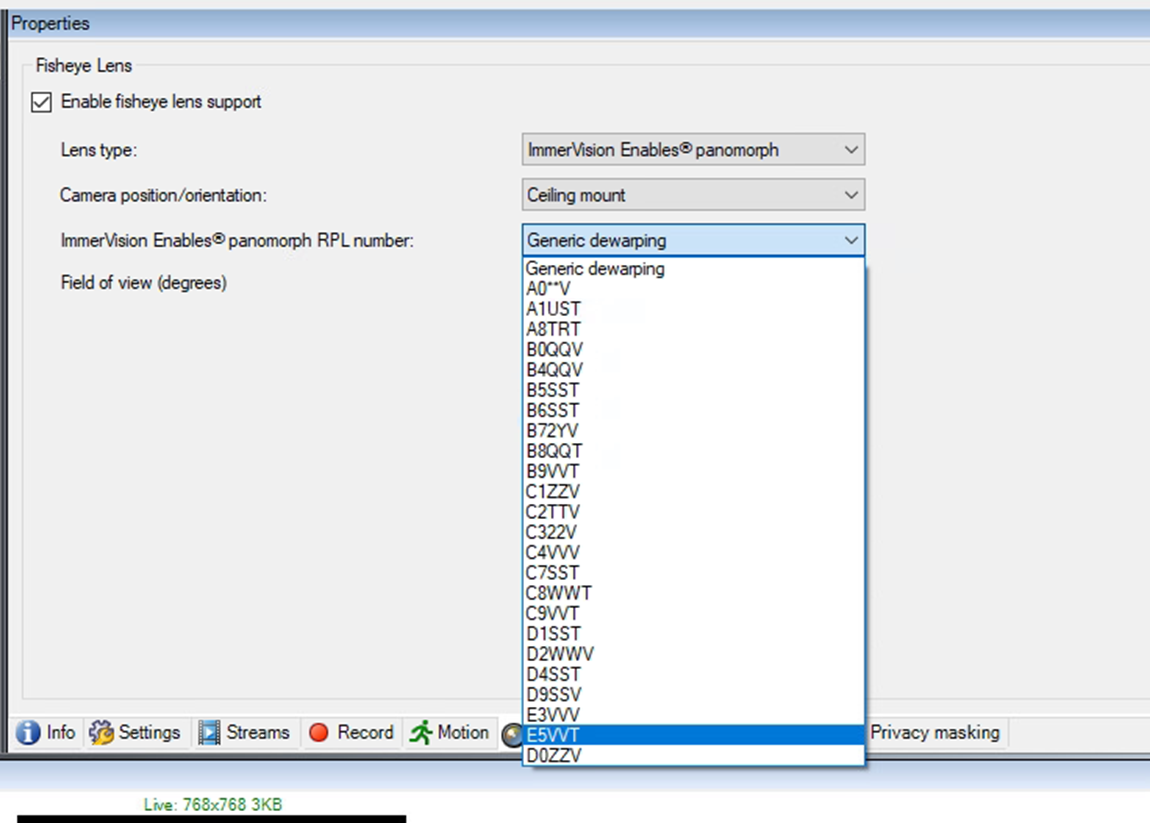

In some VMS systems, to dewarp a Fisheye type camera correctly, the system may need a lens code.
The lens code is based on the Immervision SDK. Below, please find the lens codes for our cameras.
| Camera Model | Lens Code |
| HCF-8010V | D4SST |
| PNF-9010 | C8WWT |
| QNF-8010 | D9SSV |
| QNF-9010 | E3VVV |
| SNF-7010 | B5SST |
| SNF-8010 | C7SST |
| XNF-8010 | D1SST |
| XNF-9010RV | E5VVT |
