This article explains how to display different fisheye dewarped views in both SSM 1.x and 2.x
Instructions for SSM 1.60 and earlier:
Firstly ensure the camera is set as a Fisheye camera.
On SSM 1.60 and earlier log onto the SSM Configuration Manager. In Device -> Register, select the camera from the camera list and set Type to ‘Fisheye’
In the SSM console, right click on the fisheye camera in the viewing pane and select Fisheye View Mode and the select Dewarping ON
This will now enable you to select the various dewarped profiles of the camera:
Instructions for SSM 2.10 and later:
On SSM 2.10.x log into the SSM Console and open the Configuration tab. In Device -> Registration, select the camera from the camera list and set Type to ‘Fisheye’.

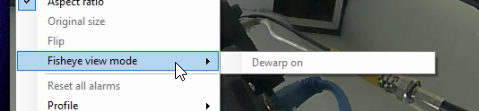

In the Monitoring tab, right click on the fisheye camera in the viewing pane and select Fisheye View Mode and the select Dewarping ON
This will now enable you to select the various dewarped profiles of the camera:

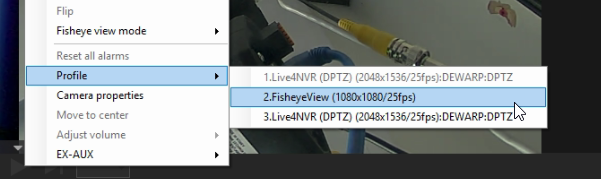

If the Dewarp option is turned off, you may need to change the profile that is being displayed. Ensure you select the 'FisheyeView' profile:
You will then be able to select a dewarp option
