In SSM 2.x you do not need a video wall licence when using the SPD-151/152 Decoders as the monitor wall. However, you do need a license when using the SSM VMD as the monitor wall. The VMD is a software decoder and can be installed during the VVM installation process.
The licence required for the VMD had the following model code: SSW-VD10L
The VMD licence must be applied on the VMD itself, within the Licence Manager application and
not via the SSM Client application.
To license the VMD, locate the Licence Manager on the VMD machine:

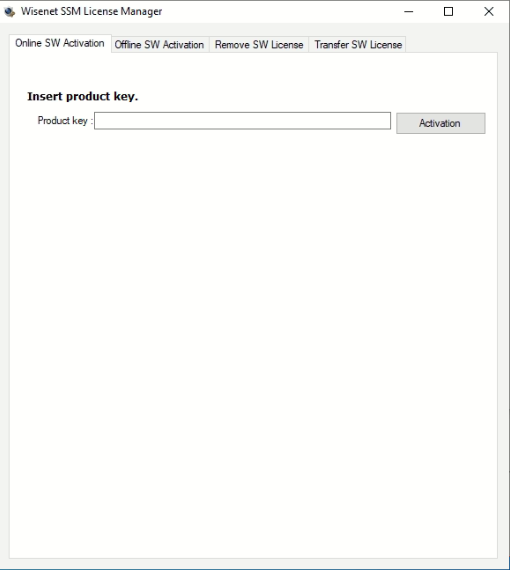

Clicking on this will open the Licence Manager:
Enter the VMD licence code here, or select the Offline SW Activation tab to input the offline activation files. Please see this article for the Offline Activation process.

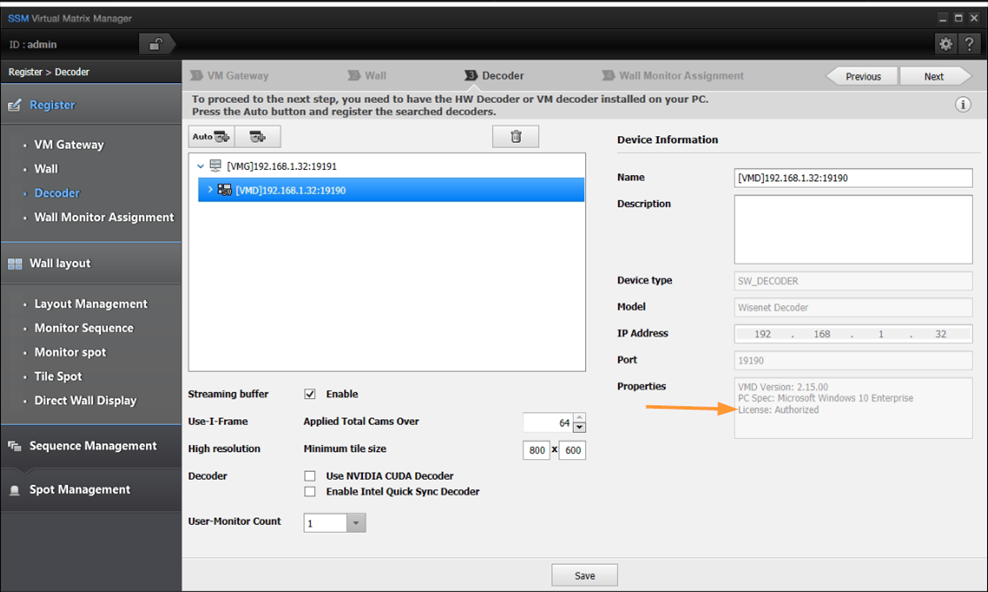

You can check in the VMM to see if the VMD is licenced i.e. authorised or unlicensed i.e. unauthorised
An unlicensed VMD:
A licenced VMD:
