The WRN range (WAVE PoE NVR) runs on Ubuntu (Linux OS based on Debian branch of distributions)
To change the Keyboard & OS language, please follow the below steps:
NOTE - An active internet connection to the WRN recorder is needed for this process
- Power on and log into WAVE PoE NVR
- Go to Ubuntu settings in any of the following ways:
- Using keyboard:
- Press the Start/Windows key on your keyboard
- Type settings and press Enter
- Using mouse (1 of 2)
- Click on the 9-dot icon in the bottom left corner
- Click on Settings

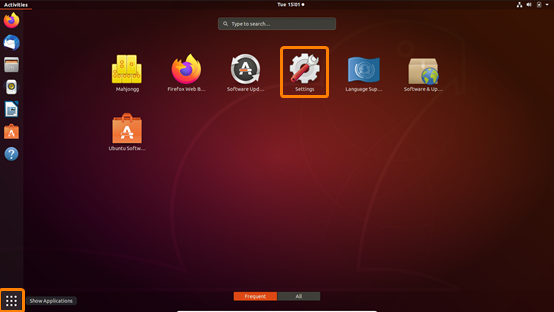

Figure 1. Finding Settings using the 'Show Application' menu via keyboard or mouse
- Using mouse (2 of 2)
- Click on the down facing arrow in the top right hand corner
- Select the Settings icon

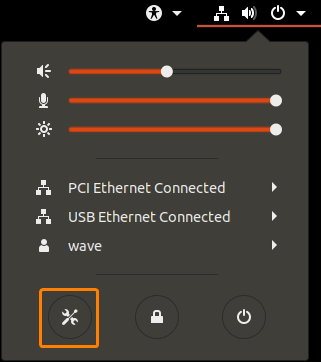

Figure 2. Alternative method of accessing settings
- Using keyboard:
- Ubuntu Settings > Select Language and Region
(Both keyboard layout and language packs can be managed in this menu)
Adding a keyboard layout
From the Language and Region under Input Source click on the + button

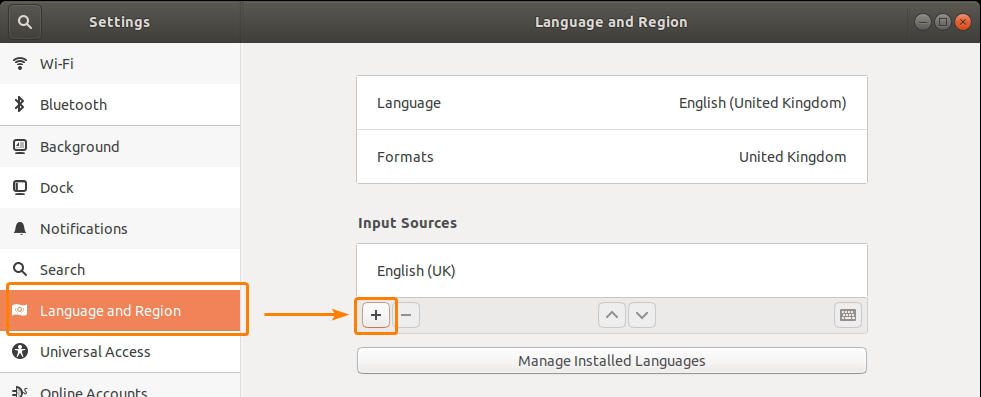

Figure3. Settings > Language and Region - Input Sources
From the Add an Input Source window, click on the THREE dots

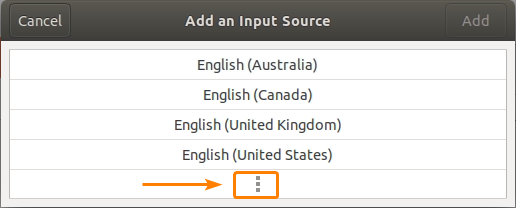

Figure 4. Add an Input Source > Click the 3 dots

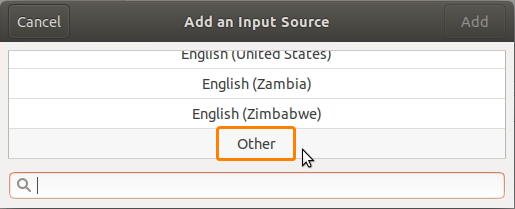

Figure 5. Scroll down the list and select 'Other'
You can search for a language by simply entering the language via a connected keyboard, or scroll through the list of languages.

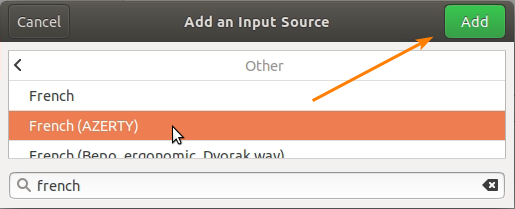

Figure 6. Search for language desired and click the green 'Add' button
Once the language has been added added it will be added in the 'Input Sources' section.
Input language priority can be changed by moving the desired language up or down.

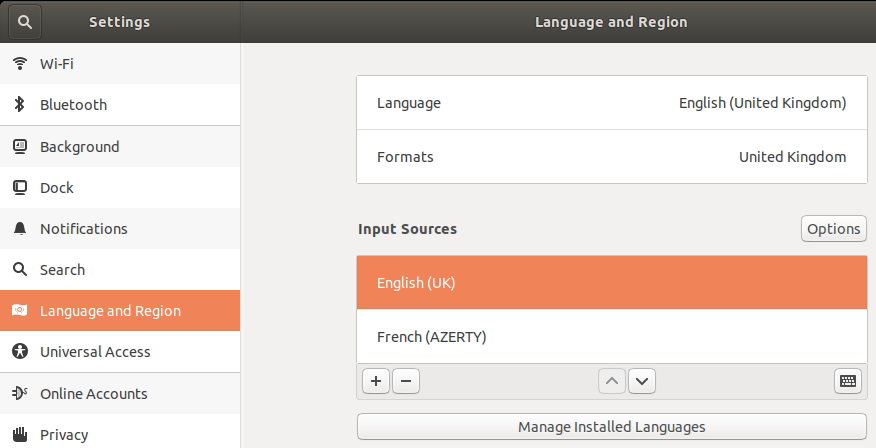

Figure 7. Selected language will now appear under Input Sources section,
Adding a Language pack to Linux
From Settings > Language and Region click on 'Manage Installed Languages' button

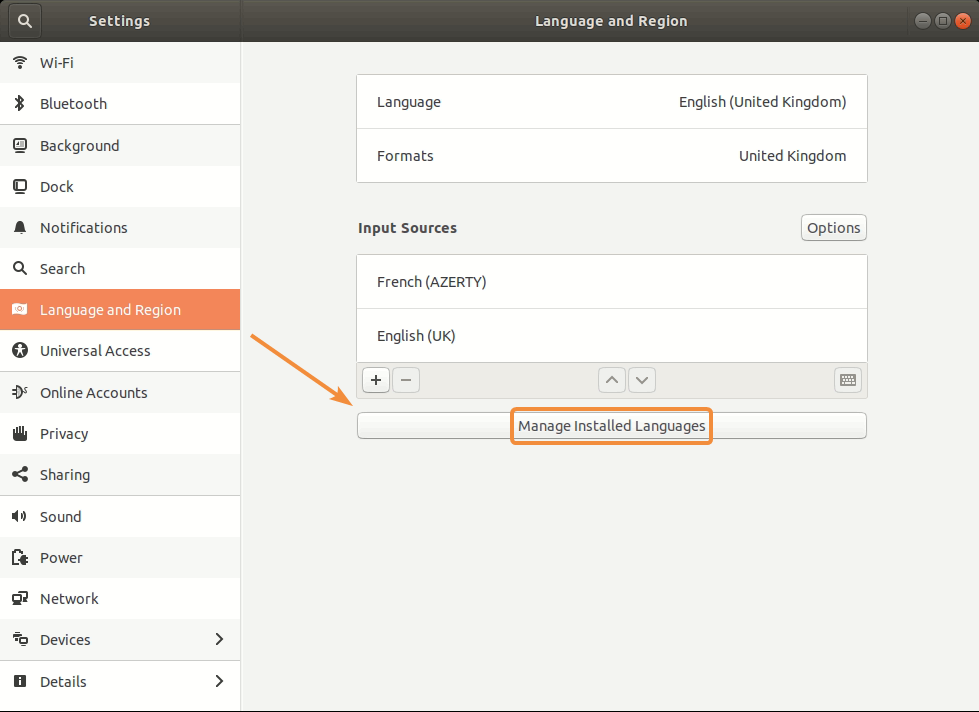

Figure 8. Language and Region > Manage Installed Languages

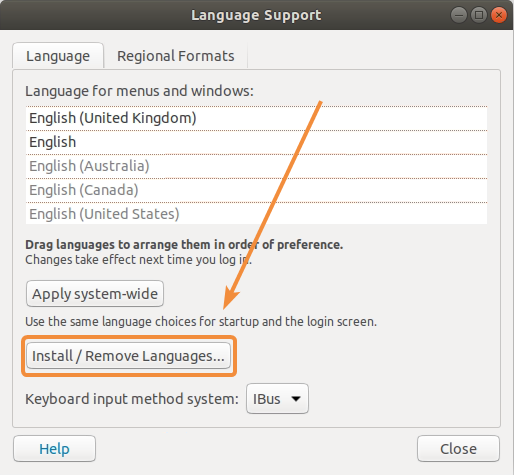

Figure 9. From the Language Support windows, click on the button 'Install/Remove Languages...'
From the Installed Languages windows, you can search for a desired language by entering is via a connected keyboard or scroll through the list.

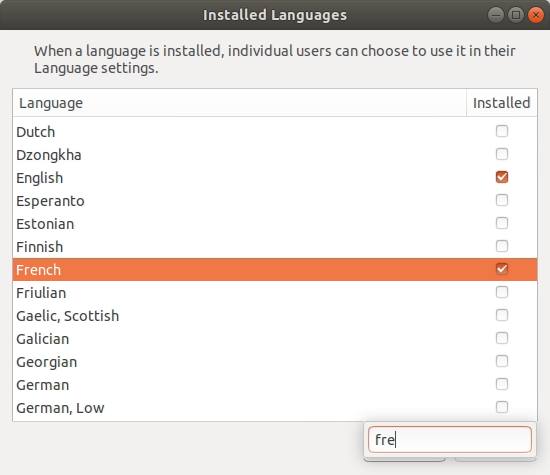

Figure 10. Searching for a language by typing on a connected USB keyboard
Select the desired language by checking the box under the Installed column and click Apply

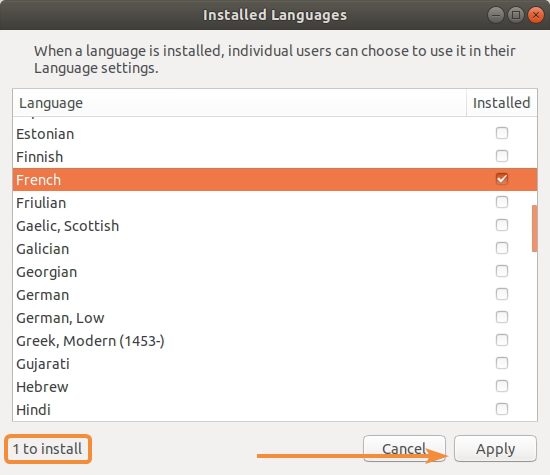

Figure 11. Notice in the lower left corner of the window the number of languages to install

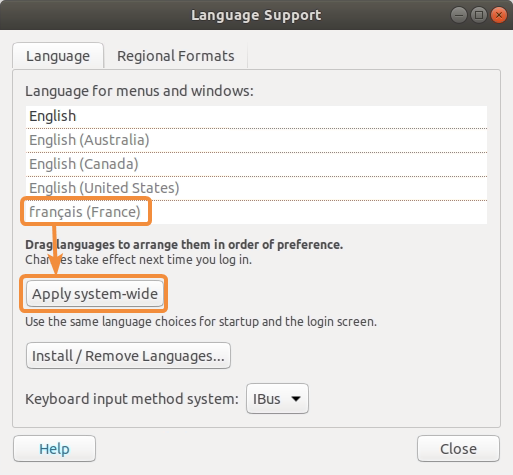

Figure 12. Once the language is added, click on the button 'Apply system-wide'
You will be prompted to authenticate in order to apply the changes, enter the Linux OS user password.

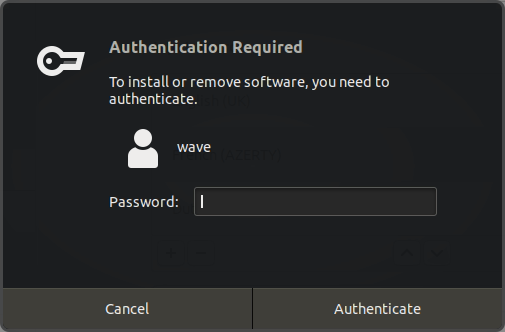

Figure 13. Authenticate to apply changes.

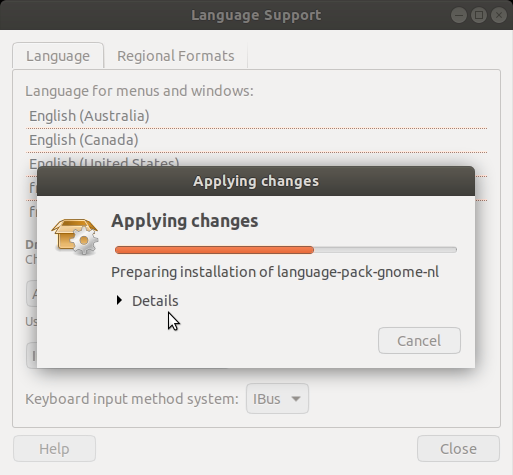

Figure 14. Language pack will download
Once the language and input sources are install, you can change the Language and Formats as per the below Figure 15.

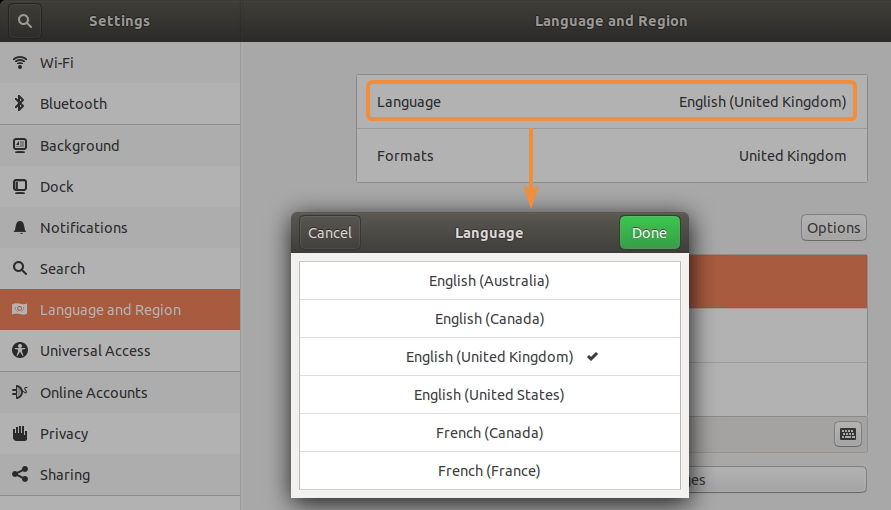

Figure 15. Language and Formats such as date format and currency can be changed from here
Finally, restart the WAVE PoE NVR to complete the changes made.
