How to show the different fisheye dewarped views on a NVR
The process for showing deparwped fisheye views depends on the age of the camera.
Process for newer cameas such QNF-9010 XNF-9013R, any model with a C in its model code
Camera channels are cretaed and dewarped views are assigned to these channels.

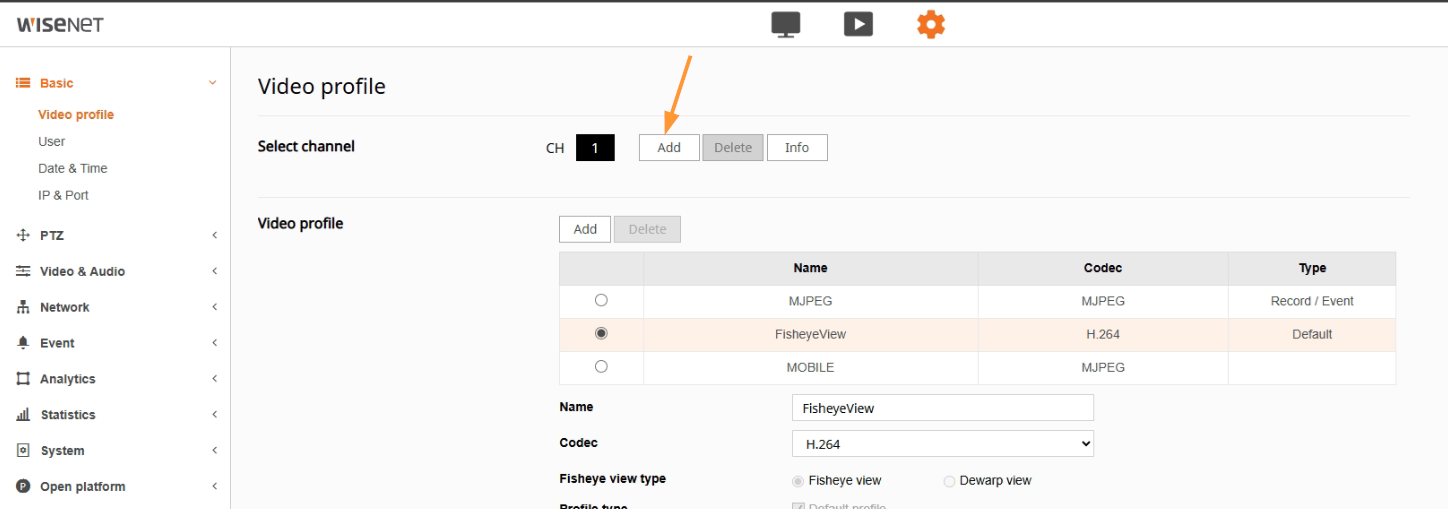

Add a new channel:

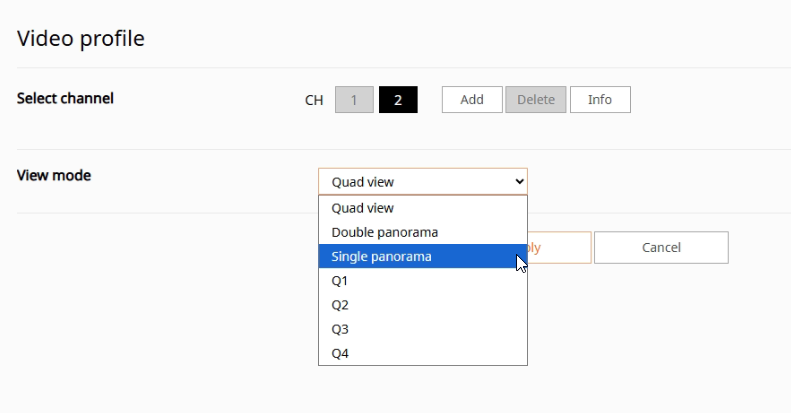

Assign the desired dewarp view to this channel e.g.
Click Apply and the camera will restart

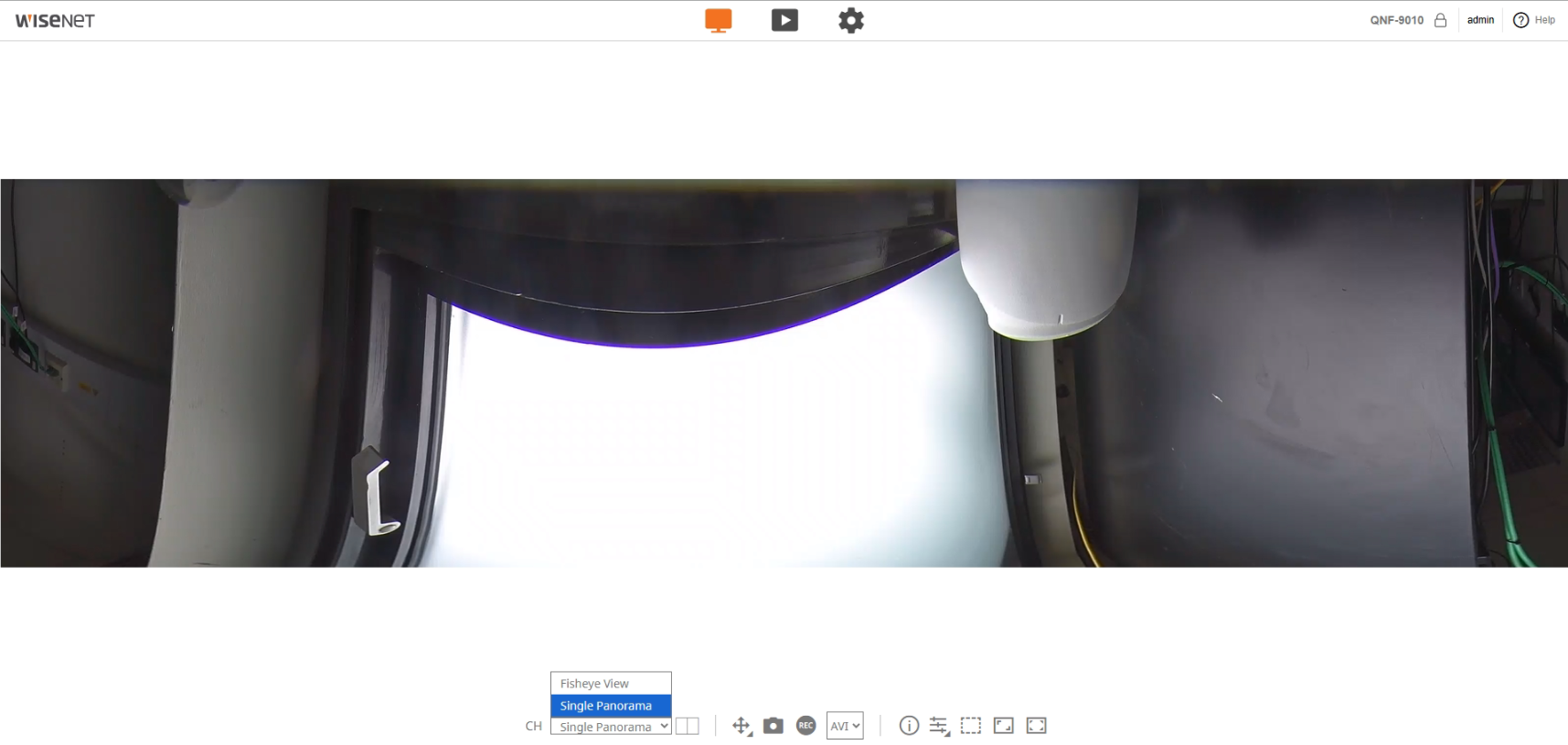

You can then select the dewarped channel via the newly created channel

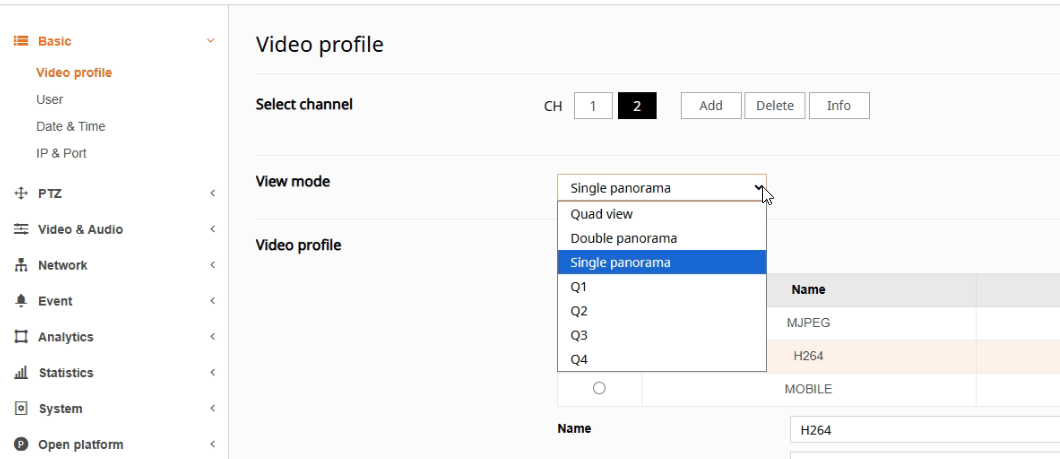

You can easily change the dewarp view to another view
If you need to record this view, you can do so by adding the second channel to a NVR
Process for older cameras such as the PNF-9010
Dewarped views are created as Video Profiles
Firstly, the dewarped profiles must be created on the camera. Go to Camera Setup -> Basic-> Video Profile:
These are the default profiles available on a fisheye camera:
Add a new profile, give it a name and select a dewarp view. Then press Apply to save the changes.
Repeat for as many dewarped profiles are needed:
The dewarped profiles can be selected and viewed on the camera webpage:
