How to set up Motion Detection recording on NVRs

This article covers setting up motion detection on the following NVRs:

QRN-420S

QRN-820S

QRN-1620S

XRN-420S

XRN-820S

XRN-1620S

XRN-1620B2

XRN-1620B4

XRN-6410B2

XRN-6410DB4

PRN-1605B2

PRN-3205B2

PRN-3205B4

PRN-6405B4

PRN-6405DB4

For older models of NVRs, see this article

Enable motion detection in the Event section
If you need to set up the motion detection area, sensitivity and object size, this must be done via the camera setup page

Set up a rule to record motion detection events:

(The event action can be left blank)

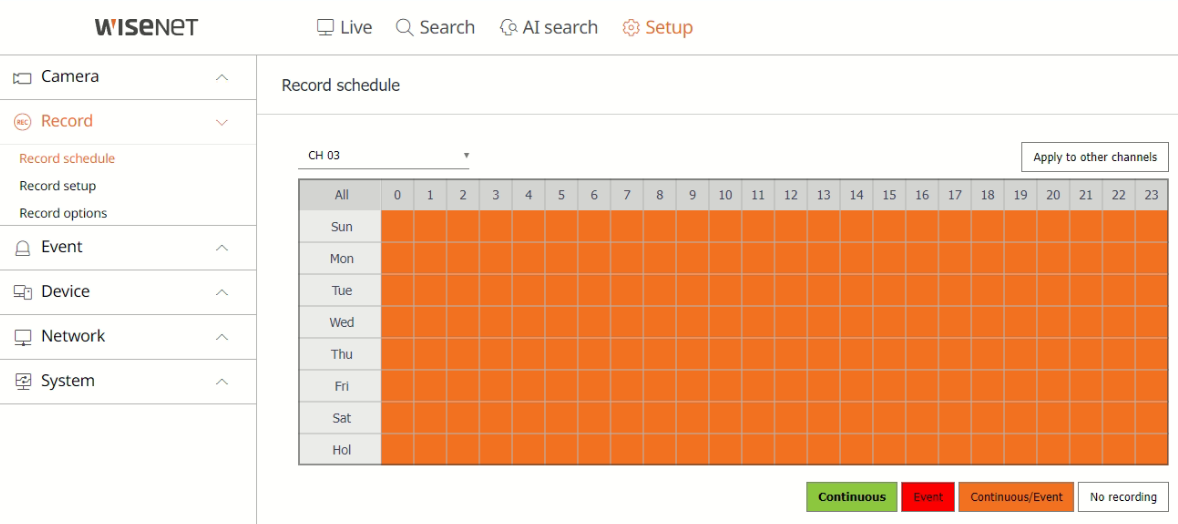

Ensure the camera is recording Events or Continuous & Events:

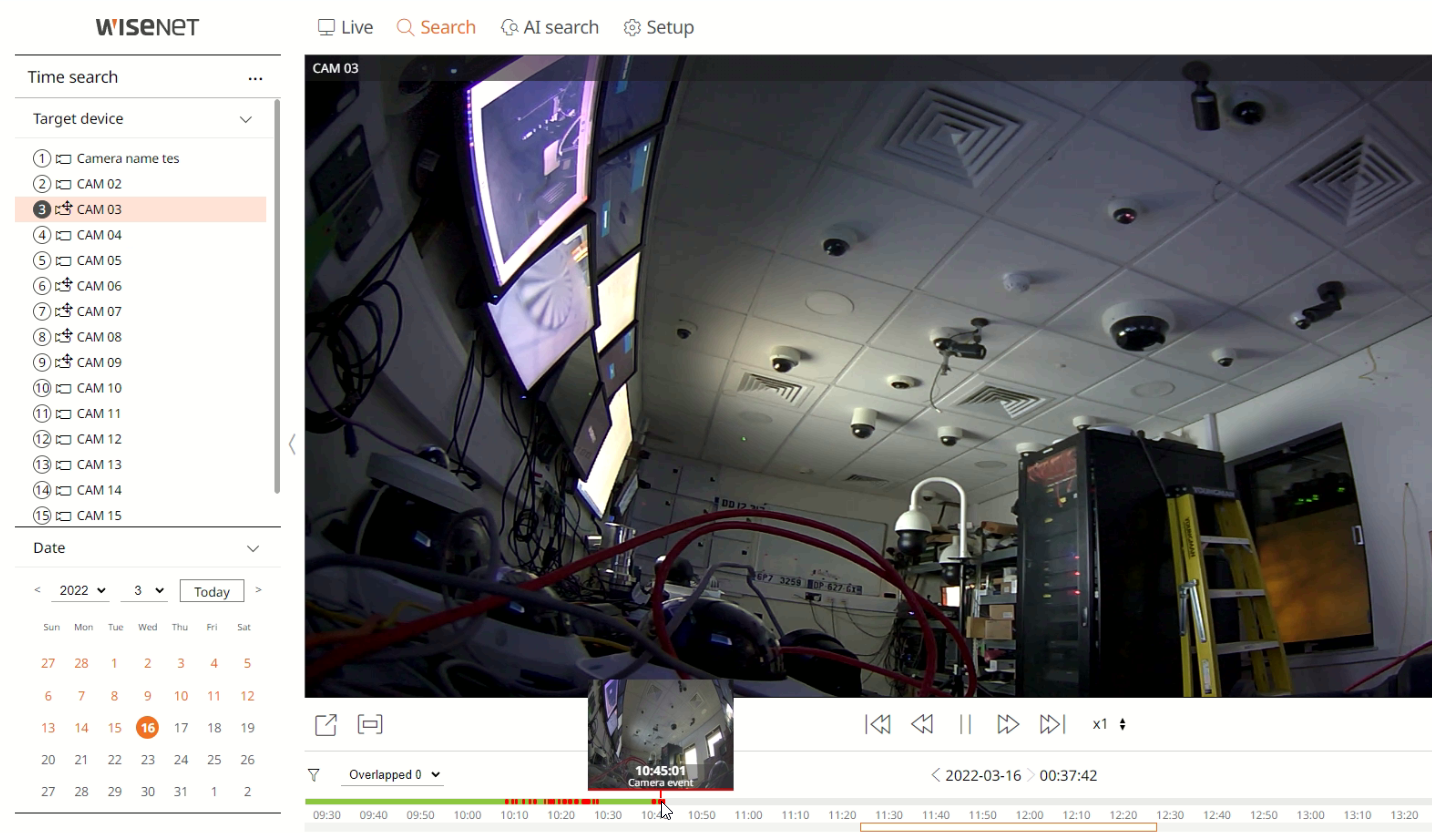

The camera will now record on motion, this is visible on the camera timeline:

Troubleshooting

If it is not working, check the camera logs and NVR logs to ensure motion detection events are actually occurring. You may need to configure the object size and sensitivity parameters to suit the level of detection

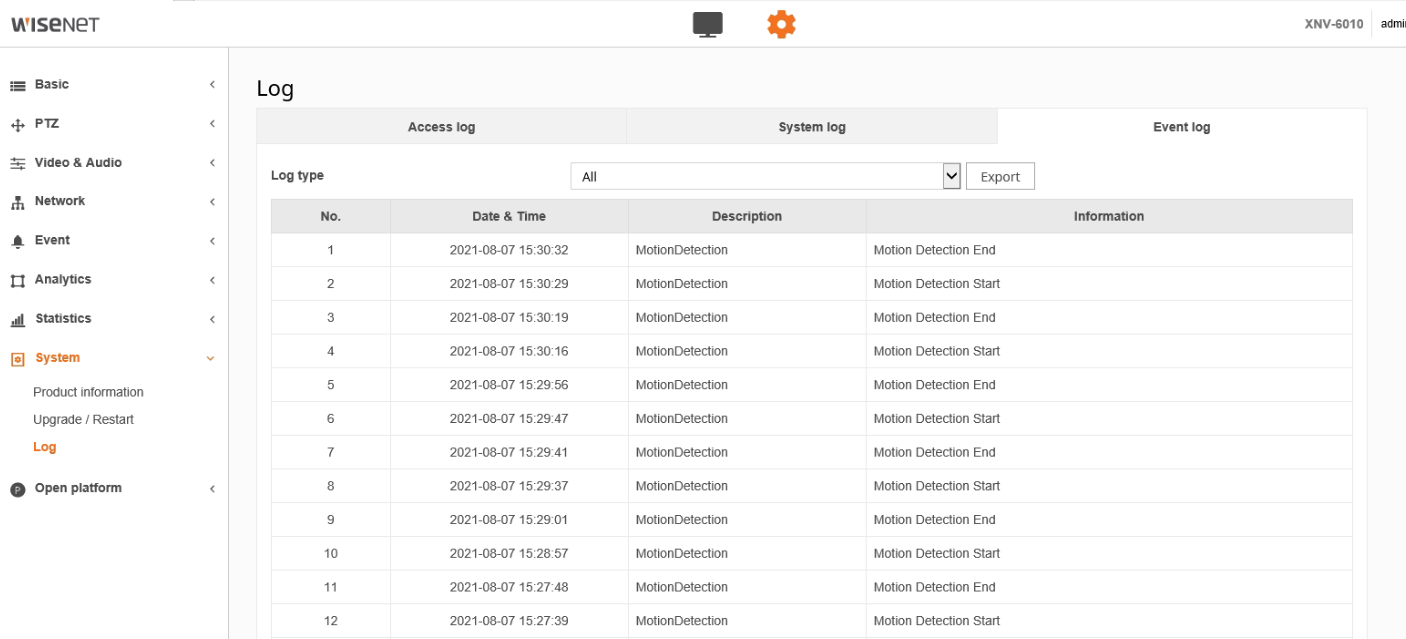

Camera logs:

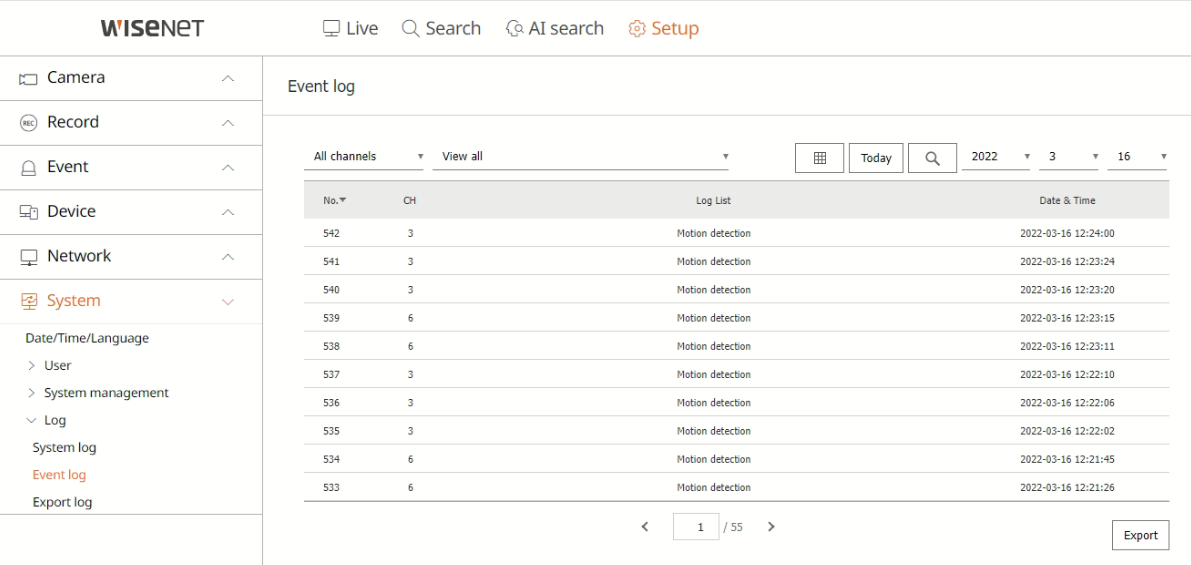

NVR logs:
