The below is a guide on how to add Multi-Sensor cameras such as the PNM series cameras and Multi-channel devices such as Encoders onto Hanwha NVRs
- Login to the NVR Web page and navigate to Device > Camera > Camera Registration.

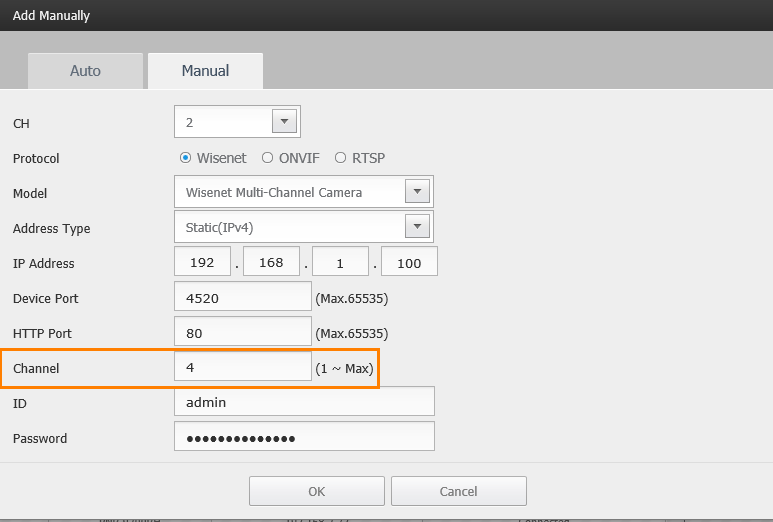

- Select Manual camera discovery:
- Set the Model to Wisenet Multi-Channel Camera
- Enter the IP address, user name & password and select the appropriate channel. The channel denotes what camera is selected on the Multi-Sensor Camera/Multi-Channel Encoder
- Click OK before closing the camera registration page to save settings/configuration
Please note, that on the newer AI NVRs users can move across individual channels of multi-sensor/multi-channel devices via Auto detect as seen below:
