How to switch video from from AHD to CVBS (analogue)
The AHD camera range default setting is AHD high resolution (2MP and above) but you can use the Function Setup Switch that is used for the OSD menu navigation.
Pressing this button down for more than 5 seconds and then release will change from AHD to CVBS and vise versa.
Alternatively you can navigate the OSD menu and change format from Main Setup menu:

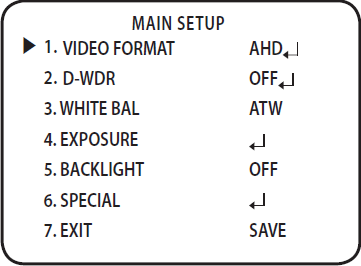

OSD Menu - 1. VIDEO FORMAT > AHD/CVBS
Some models of AHD camera can send CVBS signal out of the same BNC connector.

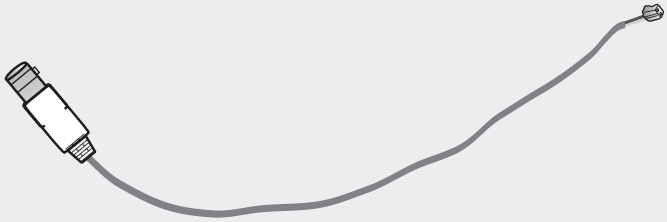

Other models will require the used of a 2 pin fly lead that came with the camera, below you can see the location of this connector but please consult the user manual for your specific model.
Video Output Cable

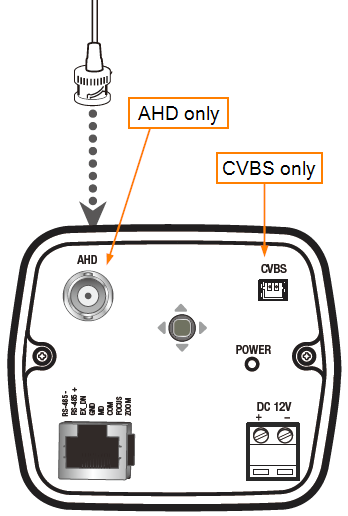

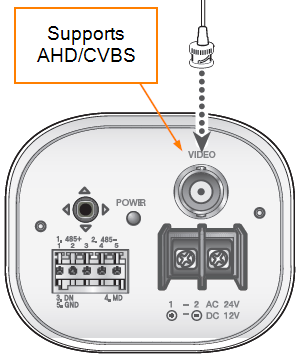

Box camera:
HCB-7000A
HCZ-6320
Bullet Camera:
SCO series will use the same BNC connector for AHD and CVBS signals.

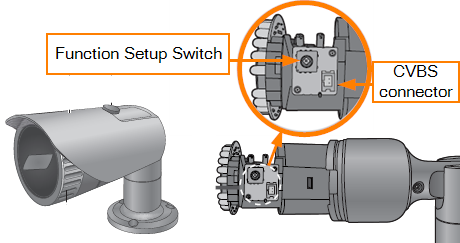

HCO series will require the use of 2 pin fly lead. The location of this is inside the camera next to the Function Setup Switch

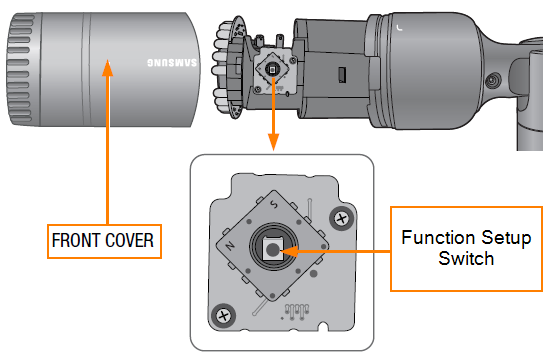

Changing the format is done via the Function Setup Switch which is found inside of the camera as per below images.
SCO-6083R
HCO-7070RA

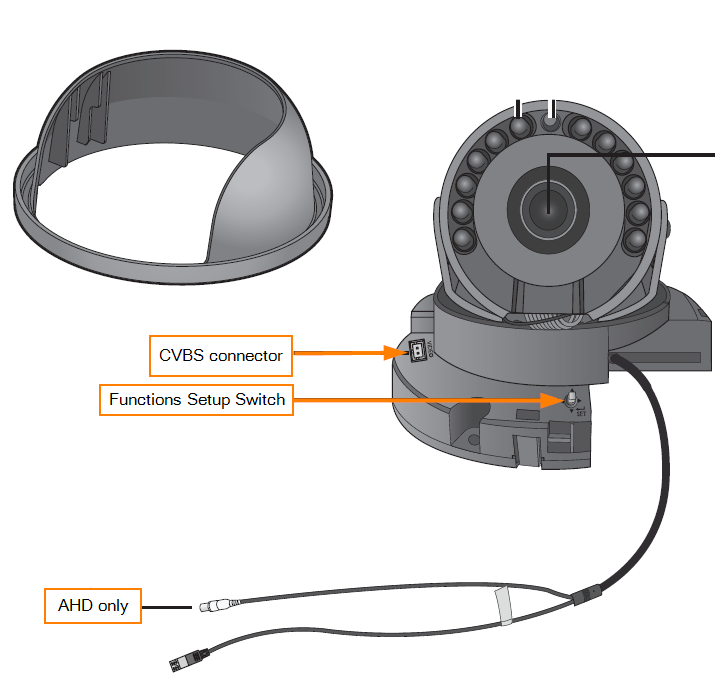

Dome Camera:
HCD-7030RA
