The below article demonstrates how to configure layouts in Wisenet Viewer

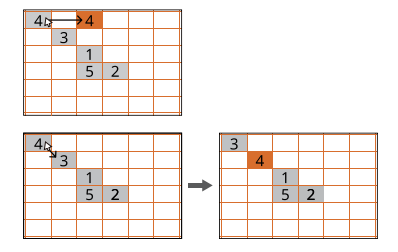

Wisenet Viewer utilises dynamic layouts where users can freely move the camera channels around as well as change the tile size of the device pulled into the layout.
Individual recorder channels can be moved into the layout as well as recorder devices.

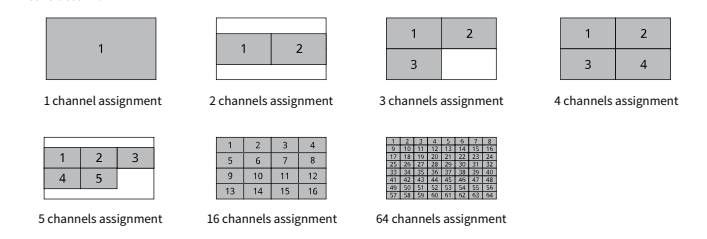

When pulling over a recorder device, the grid will automatically display all connected recorder channels. Channels are added from left to right, top to bottom.
Please note, Wisenet Viewer only allows a maximum of 64 channels to be displayed per layout.
Furthermore, users can use the mouse scroll to zoom in and out on the grid layout.

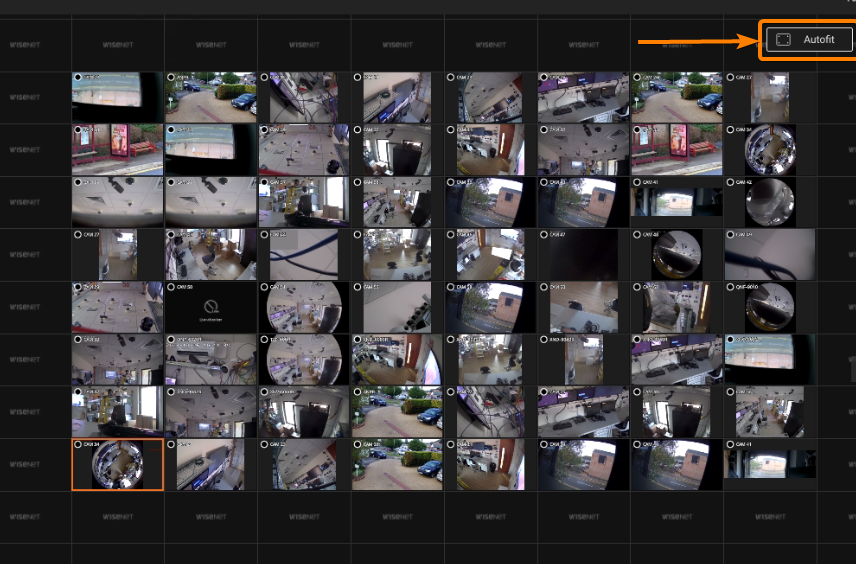

When zoomed in our out users will also see a notification appearing in the right-hand corner, 'Autofit'

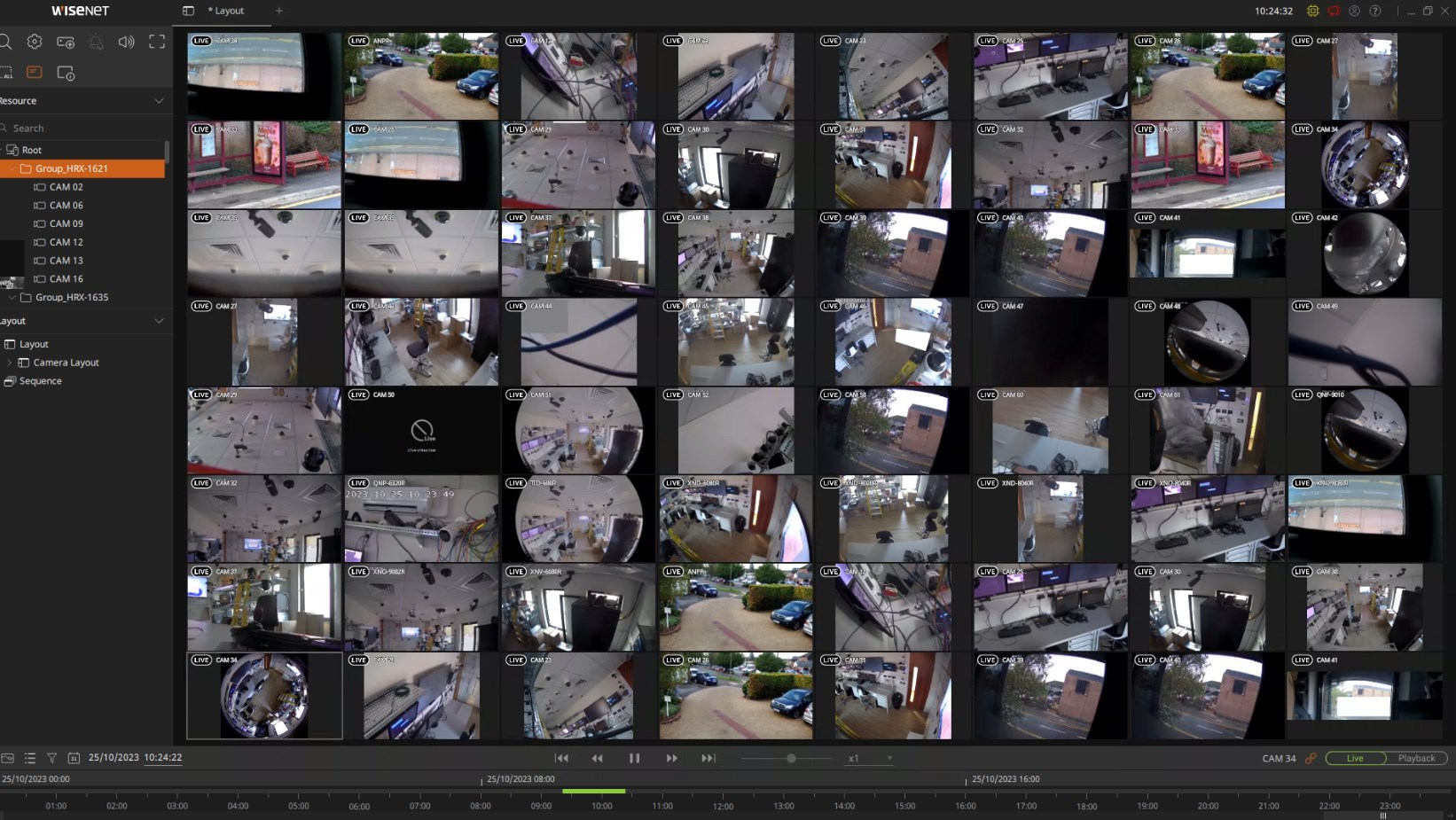

Autofit will cause the layout to fit into grid frame of Wisenet viewer (Fullscreen), it automatically adjusts the grid tile size.
